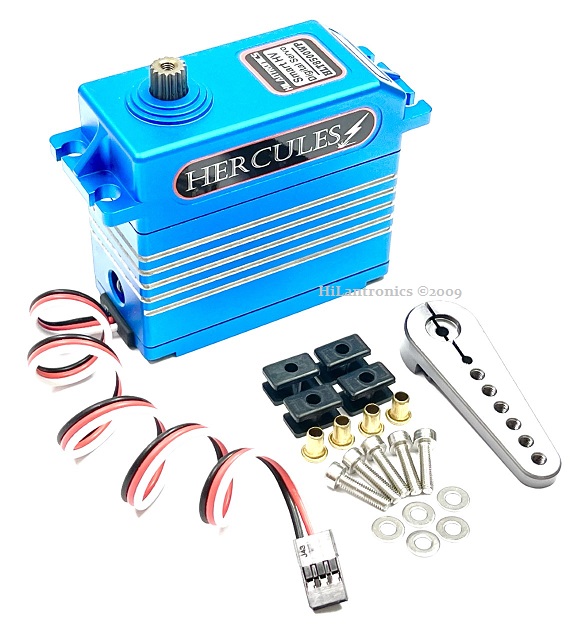

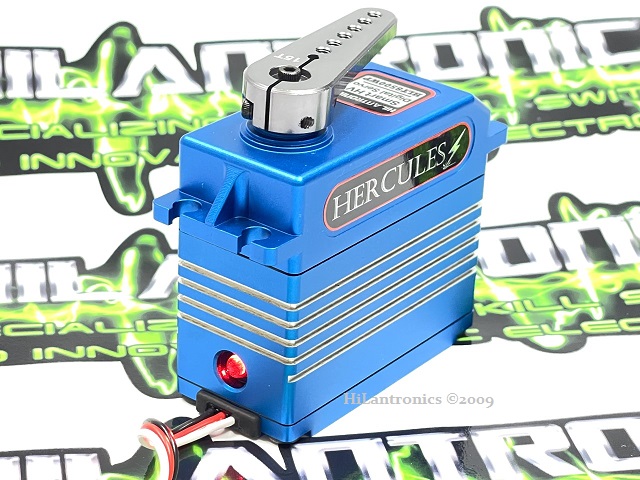

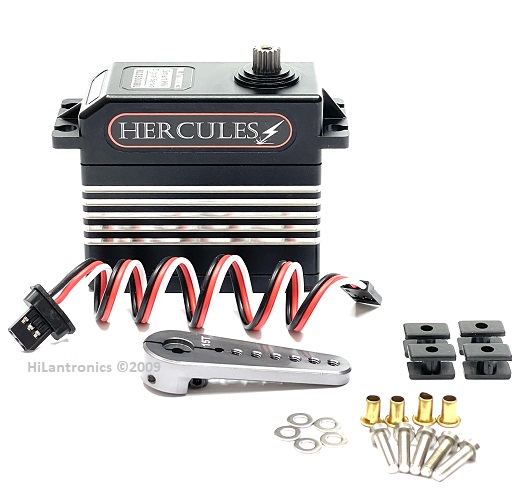

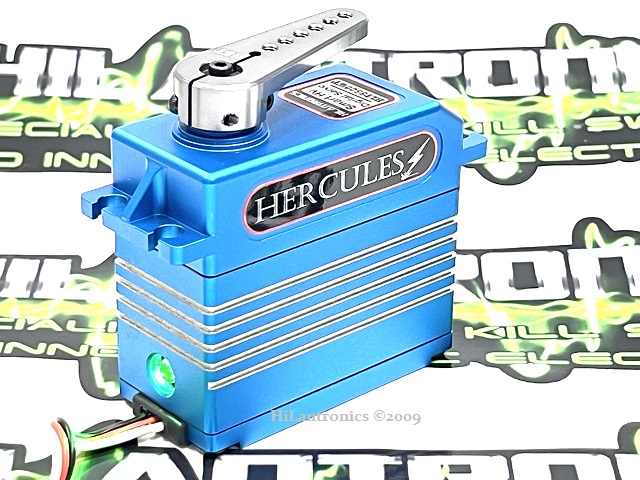

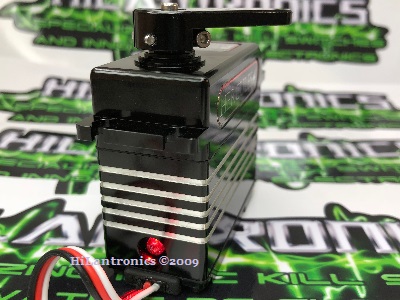

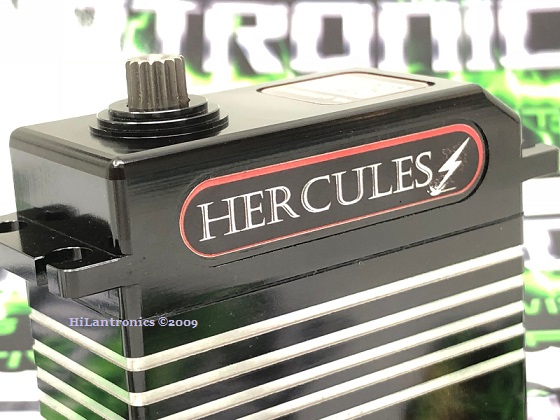

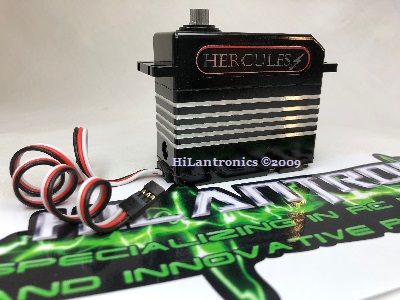

HLT8500WP – Super High Torque Digital Servo for 1/4,1/5 scale RC

Designed and Manufactured in Australia.

Unbreakable fully billet casing, waterproof *, 15T gear teeth, heavy duty metal gears, quality core metal motor, smart digital signal controller with Led status signals for diagnostic, quick disconnect servo lead, current limiter and over temperature shut down if servo ever got stuck to prevent the controller board from being burnt out, automatic shutdown if no RX signals present. Servo require 3 to 5Vdc square wave pulse. Pulse duration is from 0.9mS to 2.1mS with 1.5mS as center. Servos can be operated within a 6V-8.4V. range. The Black wire is 'ground', the Red wire ( center ) is 'power' and the third wire (white) is 'signal'.


Servo requires 3 to 5Vdc square wave pulse. Pulse duration is from 0.9mS to 2.1mS with 1.5mS as center. Servos can be operated within a 7.4V-8.4V. range. The Black wire is 'ground', the Red wire ( center ) is 'power' and the third wire (white) is 'signal'.


*Servo is splash- and water-proof, but submerging is not recommended.

LED Signal Status:
•

• - Green Flashing: No Radio Signal / Inactive
• - Red Flashing: No Radio Signal / Low Battery / Inactive
• - Green ON: Active
• - Red ON: Low Battery voltage (Below 6 Vdc)

Price:

Back to Top

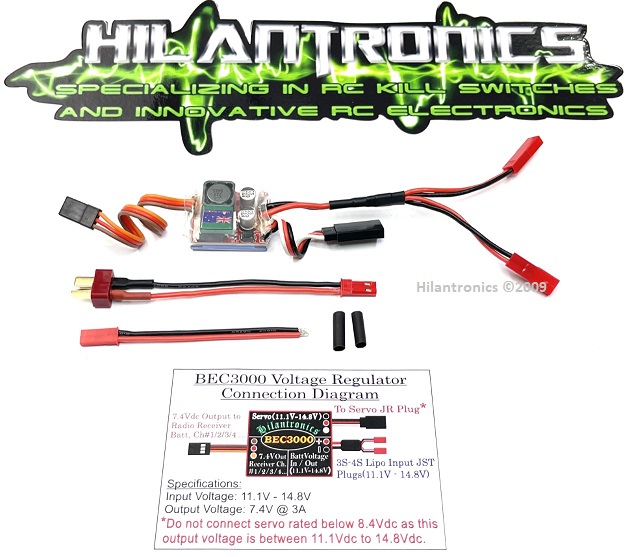

Voltage Regulator BEC3000 - <<< New Product >>>

Voltage Regulator BEC3000 - tep down voltage regulator for RC car. Recommended for LIPO 3S/4S batteries.

Designed and Manufactured in Australia.

Specifications:
•

• - Input Voltage: 11.1V - 14.8V
• - Output Voltage: 7.4V @ 3A

Price:

Back to Top

HLT8000BL - Super High Torque Brushless Servo - <<< New Product >>>

HLT8000BL - Super High Torque Brushless Servo for 1/4,1/5 scale RC

Designed and Manufactured in Australia.

Unbreakable fully billet casing, waterproof *, 15T gear teeth, heavy duty metal gears, quality core metal motor, smart digital signal controller with Led status signals for diagnostic, quick disconnect servo lead, automatic shutdown if no RX signals present.


Servo requires 3 to 5Vdc square wave pulse. Pulse duration is from 0.9mS to 2.1mS with 1.5mS as center. Servos can be operated within a 7.4V-8.4V. range. The Black wire is 'ground', the Red wire ( center ) is 'power' and the third wire (white) is 'signal'.


*Servo is splash- and water-proof, but submerging is not recommended.

LED Signal Status:
•

• - Green Flashing: No Radio Signal / Inactive
• - Red Flashing: No Radio Signal / Low Battery / Inactive
• - Green ON: Active
• - Red ON: Low Battery voltage (Below 7.0 Vdc)/ High Temperature

Price:

Back to Top

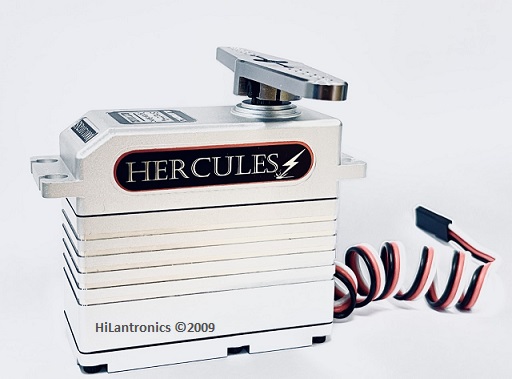

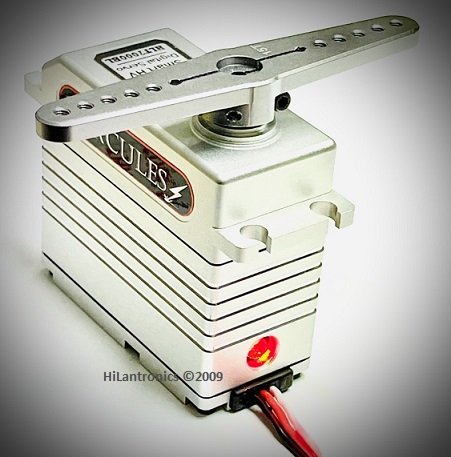

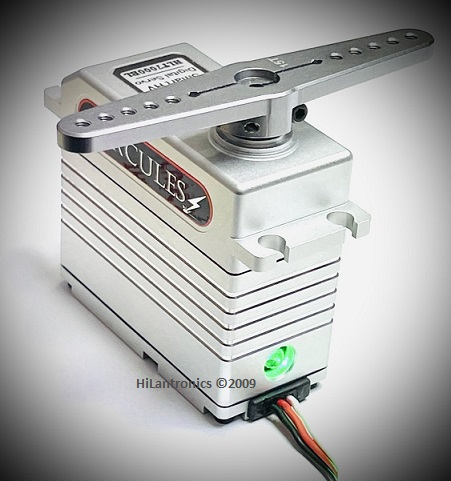

HLT7000BL High Torque Brushless Servo - <<< New Product >>>

HLT7000BL – High Torque Brushless Servo for 1/4,1/5 scale RC

Designed and Manufactured in Australia.

Unbreakable fully billet casing, waterproof *, 15T gear teeth, heavy duty metal gears, high quality brushless motor, smart digital signal controller with Led status signals for diagnostic, quick disconnect servo lead, automatic shutdown if no RX signals present.


Servo requires 3 to 5Vdc square wave pulse. Pulse duration is from 0.9mS to 2.1mS with 1.5mS as center. Servos can be operated within a 7.4V-8.4V. range. The Black wire is 'ground', the Red wire ( center ) is 'power' and the third wire (white) is 'signal'.


*Servo is splash- and water-proof, but submerging is not recommended.

LED Signal Status:
•

• - Green Flashing: No Radio Signal / Inactive
• - Red Flashing: No Radio Signal / Low Battery / Inactive
• - Green ON: Active
• - Red ON: Low Battery voltage (Below 7 Vdc)

Price:

Back to Top

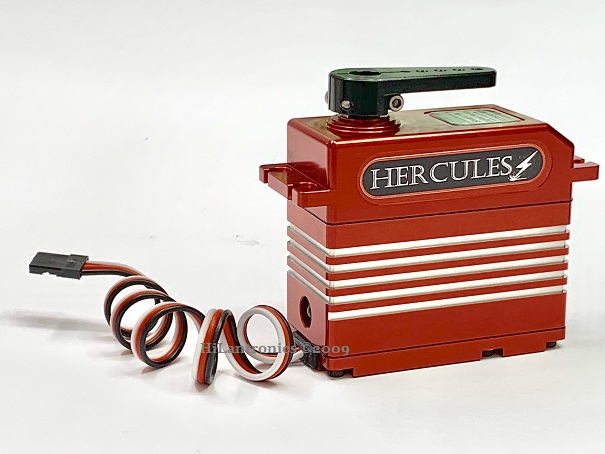

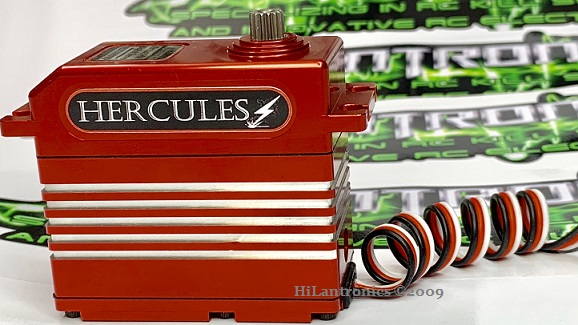

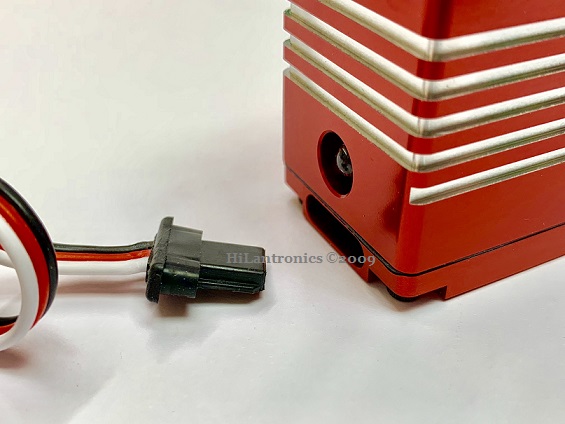

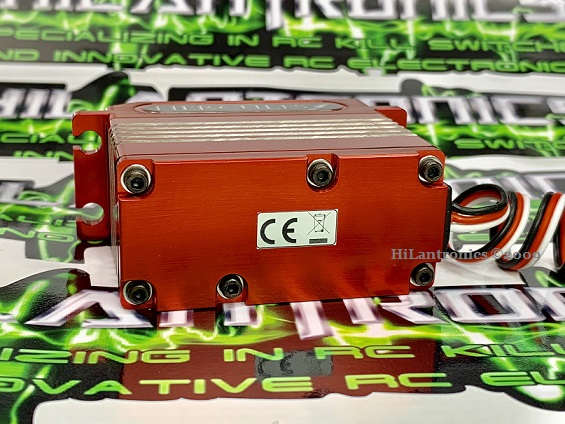

HLT5000WP High Torque Digital Servo

HLT5000WP High Torque Digital Servo

Designed and Manufactured in Australia.

Unbreakable fully billet casing, waterproof *, 15T gear teeth, heavy duty metal gears, quality core metal motor, smart digital signal controller with Led status signals for diagnostic, quick disconnect servo lead, current limiter and over temperature shut down if servo ever got stuck to prevent the controller board from being burnt out, automatic shutdown if no RX signals present.

Servo requires 3 to 5Vdc square wave pulse. Pulse duration is from 0.9mS to 2.1mS with 1.5mS as center. Servos can be operated within a 6V-8.4V. range. The Black wire is 'ground', the Red wire ( center ) is 'power' and the third wire (white) is 'signal'.

LED Signal Status:
•

• - Green Flashing: No Radio Signal / Inactive
• - Red Flashing: No Radio Signal / Low Battery / Inactive
• - Green ON: Active
• - Red ON: Low Battery voltage (Below 6 Vdc)
• - Red/Green ON: Safe Mode (Current Limited)

Price:

Back to Top

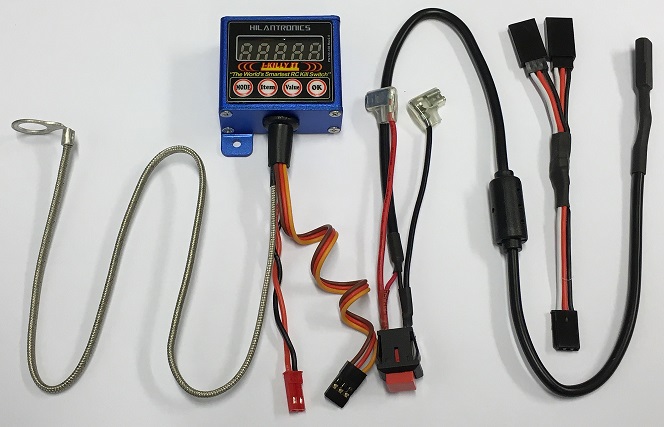

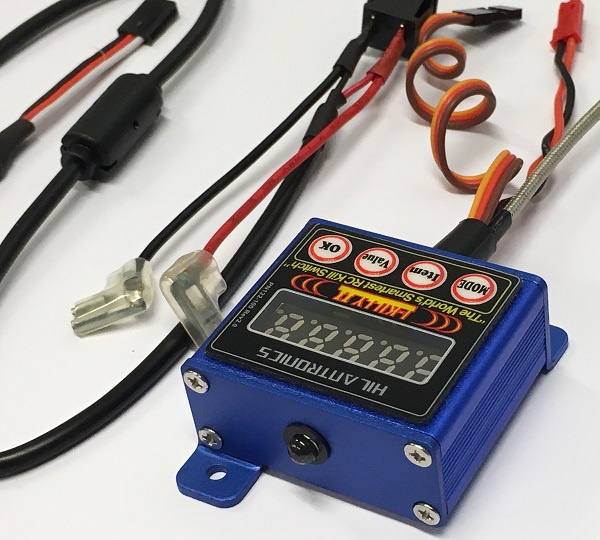

I-KILLY II - The 2nd generation of RC Engine Kill switch that redefines the safety and protection of your vehicle from running away and protect the engine from over heating. With built in display that shows the switch''s status, battery charge level ,engine temperature and engine’s RPM. State of the art technology breaking all barriers for generations to come in large scale RC. Beautifully Designed. Anodised Aluminium casing with 5 colours to choose from. Light weight and compact. Shielded stainless steel braiding thermocouple temperature sensor. Super Bright Bicolour status LED.
User friendly, can easily be programmed on the fly by the onboard keypad.

Price:

Features Include:

1. On board 0.32" 5 digital segment display
2. On board keypad
3. On board Battery Voltage Meter
4. Selectable 2, 3, 4+ channel radios
5. Adjustable glitch sensitivity
6. Adjustable low battery voltage cutoff (3.6V to 9.9V)
7. High Temperature engine shut down
8. Tachometer for displaying engine’s RPM

Back to Top

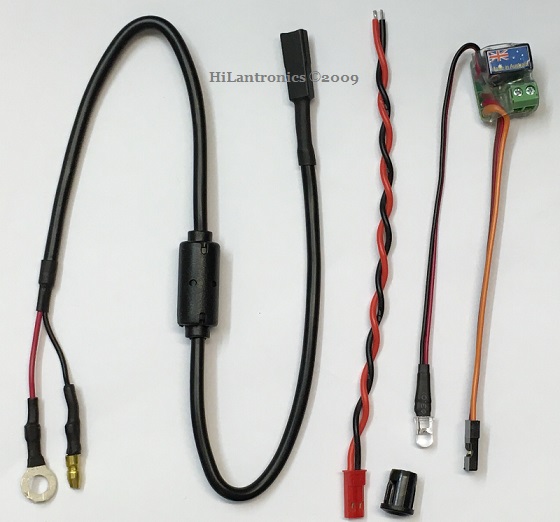

RCEKS-5GK Marine - The 5th Generation of the 2-stroke RC engine kill switch for marine engines. Designed and made in Australia. With new updated firmware and wider operating voltage. It works with most 3 & 4 channel radios. RCEKS-5GK will automatically kill the boat engine if you have a low battery, radio glitch, lose connection, or power loss. You can also kill the engine anytime you want via the transmitter`s channel switch. It kills the engine by using a mechanical relay that gives a full electrical isolation.

Price:

The kit comes with:

1. 1 x EMF noise filtered cable with quick disconnect plug
2. 1 x remote super bright red LED indicator so the status signals can be seen externally

To mount the external LED on to your receiver box, drill an 8mm hole then slide the LED through from the inside of the box and insert the LED into the LED clip then push the clip with the LED in the hole until it stops.

LED Signal Status:
•

• - Flashing: No Radio Signal
• - ON: Engine On (or Ready to Start)
• - OFF: Engine Off
• - Flashing/On - No Radio Signal / Engine Off (only applicable to Spektrum Radio)

Specification:
•

• - Operation Voltage on the receiver: 4.0 Volts DC to 8.0 Volts DC
• - Relay Voltage Max: 125VAc, 24Vdc
• - Contact Relay Current DC Max : 1A
• - Relay Coil Resistance : 167 Ohm
•

• - External LED Clip dimension:
  • - Panel Cut out diameter : 8mm
  • - Clip Length : 12.5mm

Back to Top

Price:

Back to Top

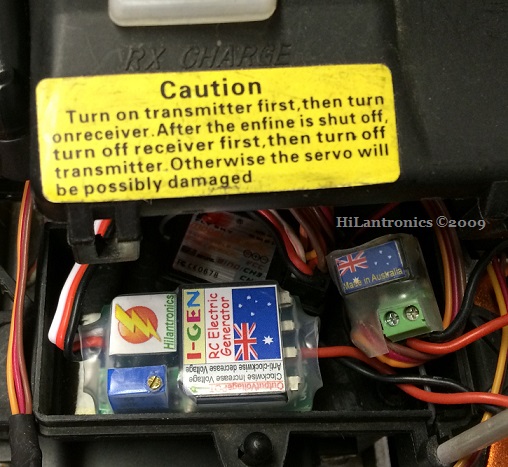

Price:

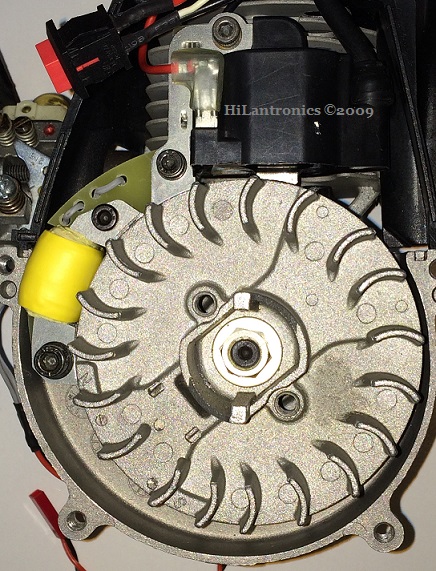

The Kit Contents:

• 1 x Alternator coil
• 1 x AC/DC Voltage Regulator
• 1 x Digital DC voltage meter
• 1 x Hex threaded spacer M5 x 10mm
• 1 x M5 spring washer
• 1 x M5 bolt
• 1 x Y cable

1. Engine types: Zenoah and CY 23cc to 30cc or similar
2. Current DC Max : 333mA @ 6VBattery types: NiCd, LiFe 2cells(6.6V), LiPo 2cells(7.4V),NiMH.
3. Voltage at idle: aprox. 4.0 to 6.0VDC @ 0.25 to 0.5 ADC
4. Voltage at full throttle: aprox. 10VDC @ 1.5+ ADC

Note:

1) Voltage and Current output variations are depending on how the alternator was installed such that the spacing gap between thealternator and the flywheel magnets and the engine’s RPM.

2) The AC/DC Voltage Regulator does not have a cell balancer, it charges the battery by supplies current at a preset voltage. For LiFe and Lipo packs, cell balancing should be done by battery charger with balancer on a regular basis to make sure the cell are balanced and hence prolong the battery life.

Back to Top

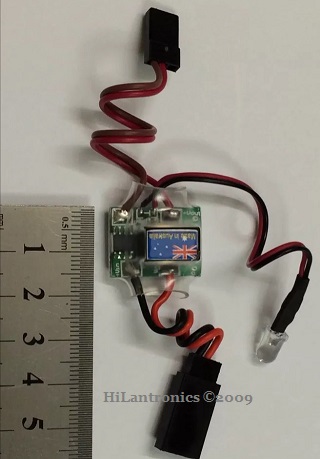

Price:

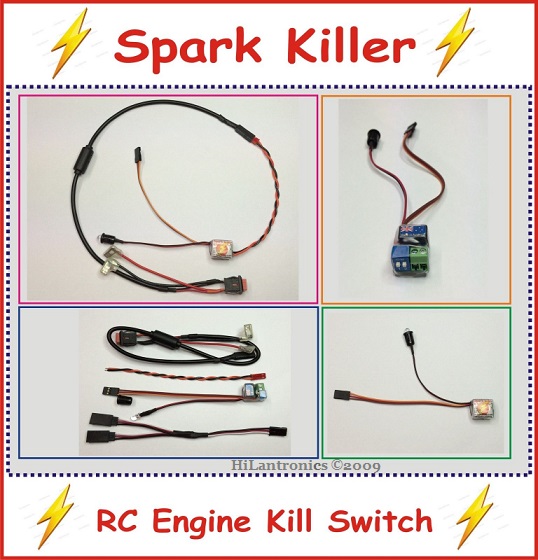

Spark Killer Kit comes with:

1. 1 x pre-soldered EMF noise filtered engine stop switch with quick disconnect plug
2. 1 x Futaba Y lead and a remote super bright red LED indicator so the kill switch status signal can be seen externally

LED Signal Status:
•

• - Flashing : No Radio Signal
• - ON : Engine On (or Ready to Start)
• - OFF: Engine Off
• - ON/OFF/ON: Engine On ( Applicable to Spektrum Radios Only)

Specification:
•

• - Operation Voltage on the receiver: 3.3 VDC to 8 VDC
• - Relay Voltage Max: 125VAc, 24Vdc
• - Contact Relay Current DC Max : 1A
• - Relay Coil Resistance : 167 Ohm
•

• - External LED Clip dimension:
  • - Panel Cut out diameter : 8mm
  • - Clip Length : 12.5mm
• - Dip Switch Setting:
  • - Sw1 :ON= 3, 4+ Channel Radio, OFF= 2 Channel Radio
  • - Sw2: ON=3.3Vdc Cutoff, OFF=4Vdc Cutoff

Back to Top

Price:

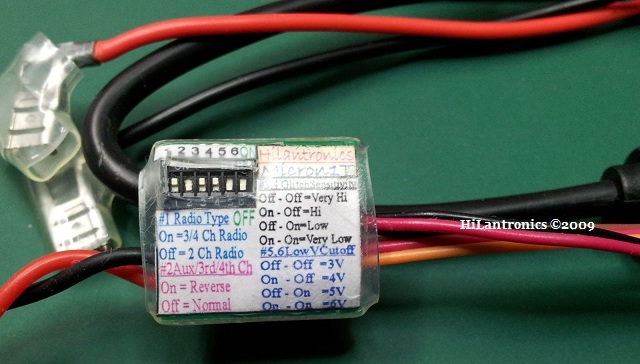

Features Include:

1. Selectable 2, 3, 4+ channel radios
2. Adjustable glitch sesitivity
3. Adjustable low battery voltage cutoff (3,4,5 or 6V cutoff)

LED Signal Status:
•

• - Flashing - No Radio Signal
• - ON: Engine On (or Ready to Start)
• - OFF: Engine Off
• - Flashing/Off/On - No Radio Signal / Engine Off (only applicable to Spektrum Radio)

Specification:
•

• - Operation Voltage on the receiver: 3.0 Volts DC to 9.0 Volts DC
• - Relay Voltage Max: 125VAc, 60Vdc
• - Contact Relay Current DC Max : 1A
• - Relay Coil Resistance: 91 Ohm
• - External LED Clip dimension:
  • - Panel cut out diameter: 8mm
  • - Clip Length: 12.5mm

Back to Top

Price:

Features Include:

1. Selectable 2, 3, 4+ channel radios
2. Adjustable glitch sesitivity
3. Adjustable low battery voltage cutoff (3,4,5 or 6V cutoff)

LED Signal Status:
•

• - Flashing - No Radio Signal
• - ON: Engine On (or Ready to Start)
• - OFF: Engine Off
• - Flashing/Off/On - No Radio Signal / Engine Off (only applicable to Spektrum Radio)

Specification:
•

• - Operation Voltage on the receiver: 3.0 Volts DC to 9.0 Volts DC
• - Current DC Max : 333mA @ 6V
• - Coil Resistance: 18 Ohm
• - External LED Clip dimension:
  • - Panel cut out diameter: 8mm
  • - Clip Length: 12.5mm

Back to Top

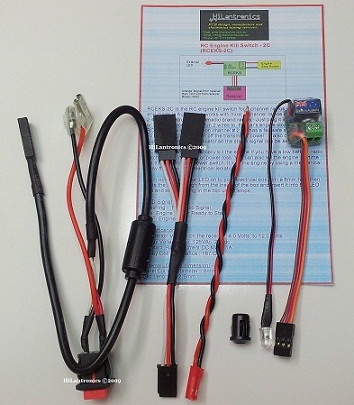

RCEKS-2C - the RC engine kill switch for 2 channel radios designed and made in Australia. It works with most 2 channel radios. RCEKS-2C will automatically kill the engine if you have a low battery, radio glitch, lose connection or power loss. You can also kill the engine anytime via the transmitter`s power switch. It kills the engine by using a mechanical relay that gives a full electrical isolation. It also comes with the super bright red LED indicator so the status signal can be seen externally.

Features Include:

1. 1 x Y cable
2. 1 x prewired noise filtered engine stop switch
3. 1 x quick disconect plug
4. 4. 1 x remote super bright red LED indicator so the kill switch status signal can be seen externally

LED Signal Status:
•

• - Flashing - No Radio Signal
• - ON: Engine On (or Ready to Start)
• - OFF: Engine Off
• - OFF/ON: Engine Off (only applicable to Spektrum Radios)

Specification:
•

• - Operation Voltage on the receiver: 4.0 Volts to 12.0 Volts
• - Relay Voltage Max: 125VAc, 24Vdc
• - Contact Relay Current DC Max : 1A
• - Relay Coil Resistance : 167 Ohm

Price:

Back to Top

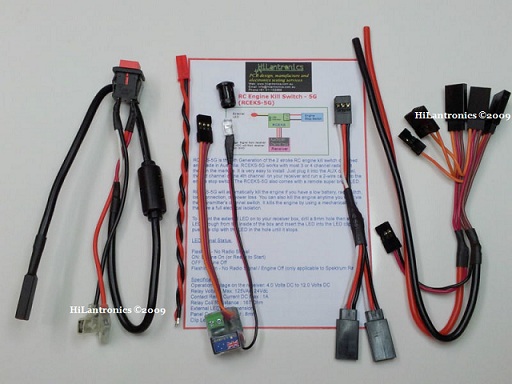

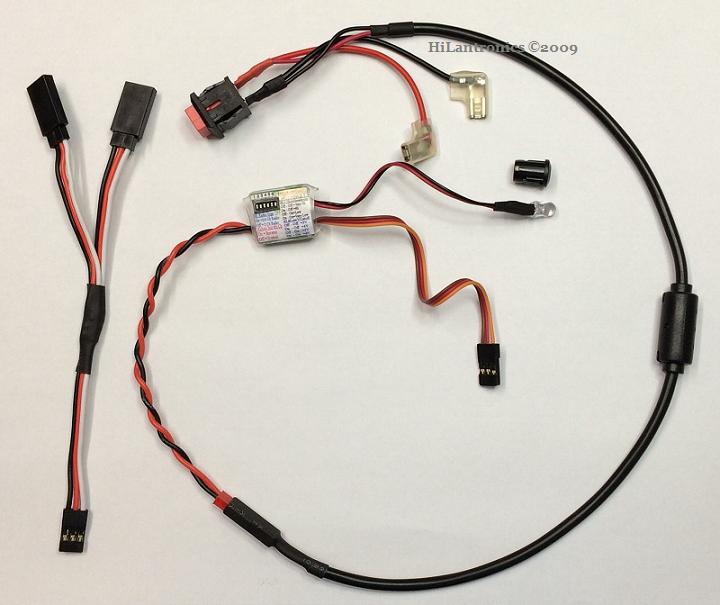

RCEKS-5G - the 5th Generation of the 2-stroke RC engine kill switch designed and made in Australia. With new updated firmware and wider operating voltage. It is a 3 in 1 version (version RCEKS-2G, RCEKS-3G and RCEKS-4G). It works with most 3 or 4 channel radios. RCEKS-5G will automatically kill the engine if you have a low battery, radios glitch, lose connection, or power loss. You can also kill the engine anytime you want via the transmitter`s channel switch. It kills the engine by using a mechanical relay that gives a full electrical isolation

Price:

Features Include:

1. 1 x pre-soldered EMF noise filtering engine stop switch with quick disconnect plug
2. 1 x Futaba Y lead
3. 1 x Direct Servo Power Supply Cable
4. 1 x remote super bright red LED indicator so the kill switch status signal can be seen externally

LED Signal Status:
•

• - Flashing: No Radio Signal
• - ON: Engine On (or Ready to Start)
• - OFF: Engine Off
• - ON/OFF/ON: Engine On ( Applicable to Spektrum Radios Only)

Specification:
•

• - Operation Voltage on the receiver: 4.0 Volts to 12.0 Volts
• - Relay Voltage Max: 125VAc, 24Vdc
• - Contact Relay Current DC Max : 1A
• - Relay Coil Resistance : 167 Ohm

Back to Top

This is the 1st Generation of the 2 stroke RC engine kill switch (RCEKS) designed and made in Australia. It works with all 3 & 4 channel radios. Just plug it into the spared channel or the 3rd channel on your receiver and to the engine stop switch. It also comes with the super bright red LED indicator for easily see the status signal.

Price:

Features Include:

Back to Top

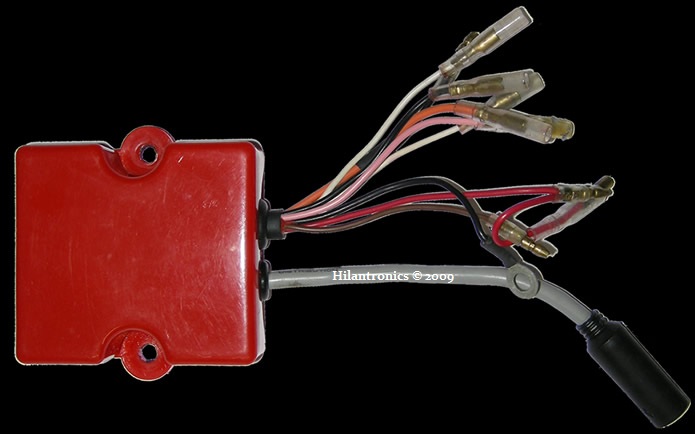

SJ Advancer Programmable Ignition CDI - for your superjet will give you the advantage over the stock CDI with more power delivered from bottom end and right up to top end. With hotter spark will make your engine easier to start and will run at the higher performance. This product has been tested overtime for reliability and performance and you can tell the difference in throttle response and power that make your ski faster and stronger.

Features Include:

1. The CDI unit allows up to 2 programmable curves with an accuracy of 1/4 degrees and 50RPM with CDI Tune Software via USB or serial RS232 programming box.
2. Programmable rev-limitter at any RPM up to 16000RPM
3. Programmable reference angle for different type of engine
4. Retrievable the current configuration of the unit
5. Program the new configuration of the unit
6. Create, open and save entire projects for later use.
7. Direct Plug-In Replacement of your stock CDI
8. Internal Voltage Boost Circuit for higher Spark Energy across the entire rev range

Price:
